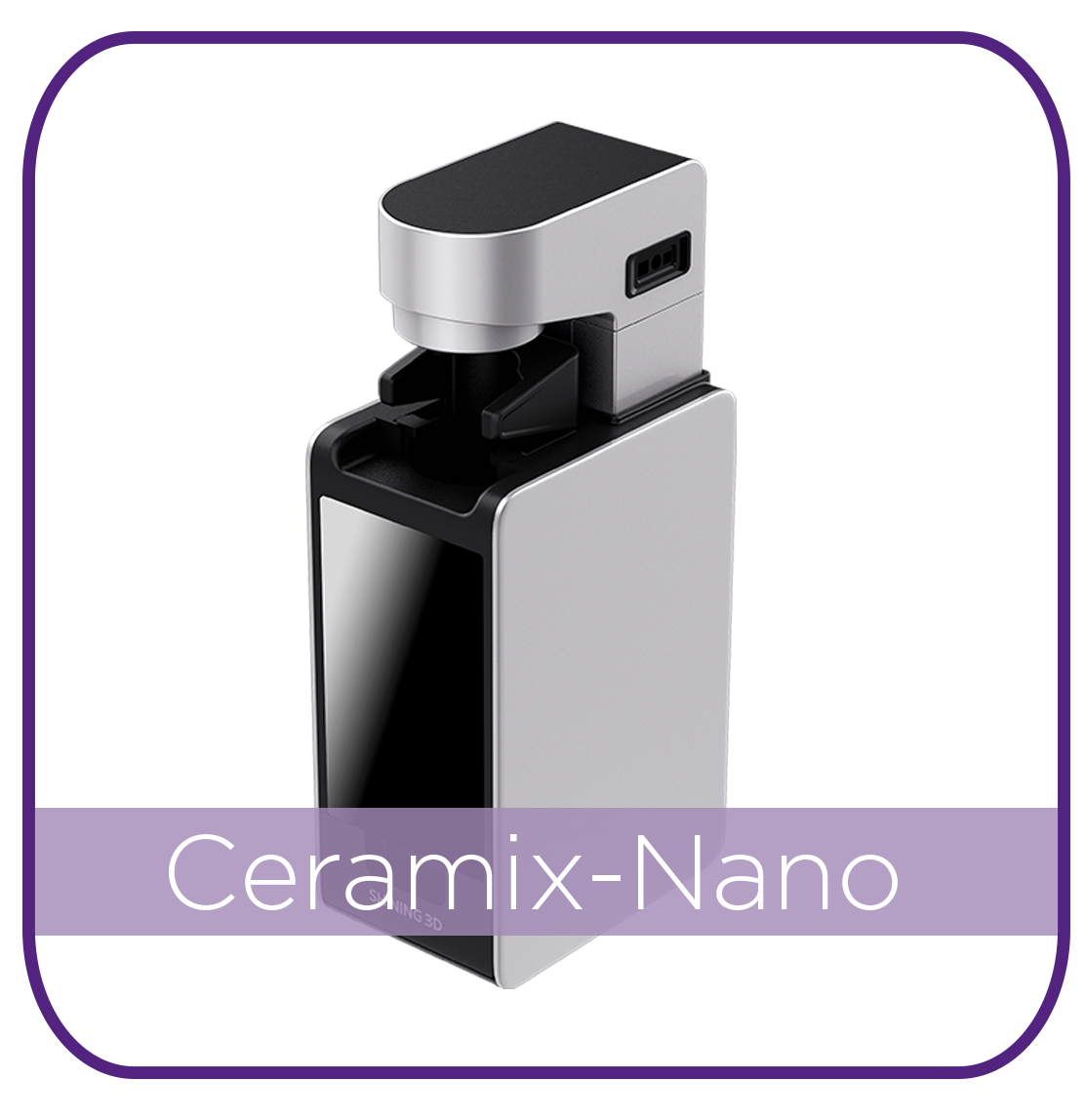

Ceramix-Nano is Shining 3D Dental's compact capsule 3D printer for chairside permanent restoration workflows. It combines capsule-based printing and built-in curing in a small clinical footprint, so a practice can plan scanning, AI design, printing, and curing around one focused system instead of a multi-device resin workflow.
VIDEO Designed for dental teams building a same-appointment restoration workflow around Ceramix-Nano and LumiCera CB200 capsule resin.
Clinical applications include crowns, veneers, inlays, onlays, and bridges up to 3 units. A single-crown print cycle is positioned by Shining 3D at about 8-11 minutes, followed by on-machine curing up to 3 minutes. The workflow connects intraoral scanning, cloud-based AI crown design, nesting, slicing, capsule loading, printing, and curing.
APS: Adaptive Pneumatic Stereolithography, developed for high-viscosity ceramic-filled capsule material handling.
DLP optical engine with 405 nm wavelength and 50 um XY resolution. Integrated curing module with a compact 87 x 131 x 276 mm hardware footprint and approximately 2 kg device weight. Power-bank compatible operation for flexible placement when a compatible high-output power bank is used.
