Imaging Performance
-
True Resolution: 24 lp/mm
-
Theoretical Resolution: ~26 lp/mm
-
High-definition CMOS sensor with CsI scintillator for enhanced image clarity

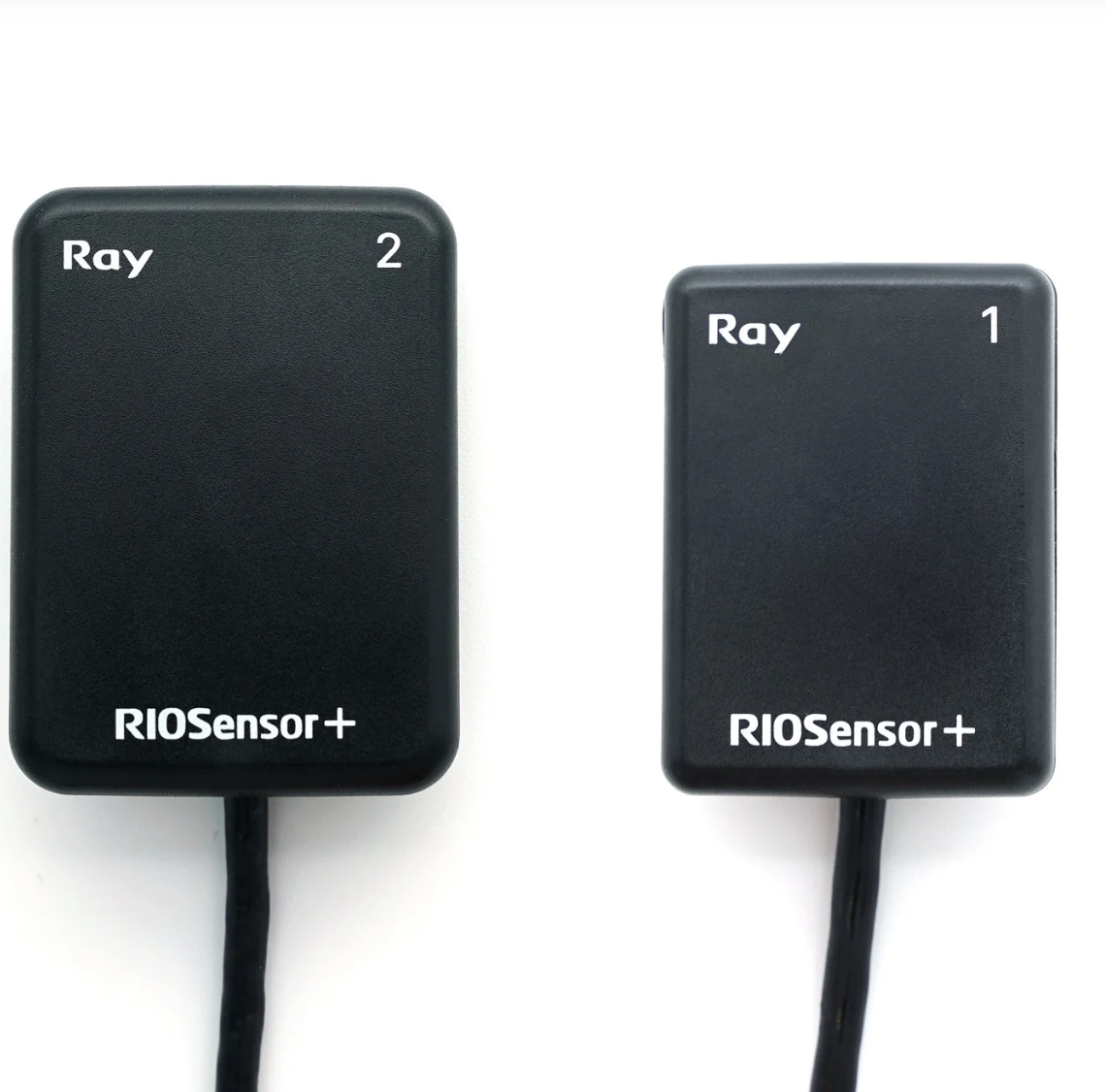

Sensor Size Options
Size 2
-
Active Area: 26.6 × 35.5 mm
-
Pixel Matrix: 1402 × 1874
-
Pixel Size: 19 μm
Size 1
-
Active Area: 22.2 × 29.6 mm
-
Pixel Matrix: 1168 × 1562
-
Pixel Size: 19 μm
Physical Dimensions
-
Sensor Thickness: ~7.3 mm
-
Case Dimensions (Size 2): ~32.2 × 44.2 mm
Technology
-
CMOS imaging sensor
-
CsI (Cesium Iodide) scintillator for improved light conversion
-
Direct USB connectivity
Durability & Design
-
Waterproof housing
-
Reinforced cable connection
-
Shock-resistant construction for clinical use
Workflow & Compatibility
-
TWAIN compatible
-
Integrates with most dental imaging software systems
-
Plug-and-play USB operation
Clinical Applications
-
General intraoral radiography
-
Endodontic imaging
-
Periodontal diagnostics
-
Restorative evaluation
DISCLOSURE: Please ask for product brochure if you have concerns about technical specifications
