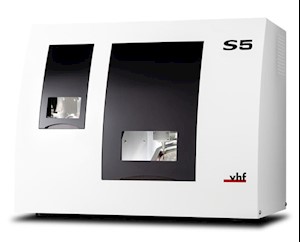

vhf - S5

BASE SYSTEM

Construction

Machine bed made of solid cast aluminum body

Housing

Sheet steel housing, white high-gloss lacquer finish with working chamber flap and material changer flap

Number of axes 5

Linear axes
X-/Y-/Z-axis

Precision ball screws · motors with resolution < 1 μm · ground precision guides made of high-alloyed steel · repetition accuracy
± 0.003 mm

Rotary axis

Backlash-free Harmonic-Drive® with highest concentricity · rotation angle: 360°, infinite

Control Unit

5-axis simultaneous control electronics with continuous path progression and dynamic pre-calculation · hardware-based real-time operating system with standardized command set · FPGA-integrated processor · updateable hardware · real-time path calculation via
hardware engines in the FPGA · four-quadrant control of the motors for particularly smooth running · multiple analogue and digital I/
Os for co

Lighting
RGB LED lighting with status display in the working chamber and in the blank changer

• Dry and wet machining
• Materials: Plastic materials, wax, zirconia, composites, CoCr, model plaster, glass ceramics, titanium
• Discs, height 10–30 mm (metals up to 18 mm), diameter 98.5 mm
• Blocks up to 45 × 20 × 20 mm
• Indications Crowns, bridges, fully anatomical crowns and bridges, inlays, onlays, abutments, telescopic crowns, models, model castings, bite
  splints, implant bars, veneers, drilling templates, dentures, table tops etc.
