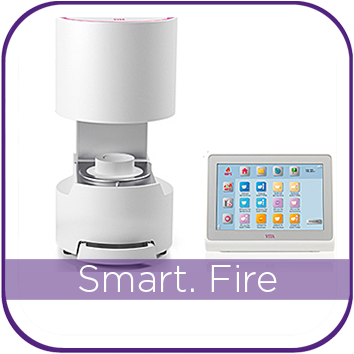

VITA SMART.FIRE®
Technical functions
- Service and monitoring programs, e.g. automatic temperature adjustment before every start of the program, temperature and vacuum control, counter for operating hours of firing muffles
- Power failure protection
- Adjustable vacuum values, adjustable pre vacuum and main vacuum
- Lift monitor, adjustable lift speed
- Freely adjustable lift positions for pre-drying and slow cooling
Technical data
Width - 230 mm
Depth - 300 mm
Height - 340 mm
Weight - 13 kg
Casing - Polyurethan
Chamber diameter - 80 mm
Chamber height - 43 mm
Firing temperature - 1050°C
Power supply - 230 volt AC, 50 Hz or 100/110 volt AC, 50/60 Hz
Power consumption - 950 W (230 V), max. 1100 W (100 V, 110 V)
Classification - Protection class 1
VITA SMART.FIRE Accessories
2x platinum pins
1x fibrous pad firing supports
1x firing trays
1x firing pliers
1x cooling table
Accessories (can be purchased separately):
- FDS program (Firing Data System) - PC software for the organisation and archiving of firing data
- Vacuum pump (230 V) in a sound-absorbing box
